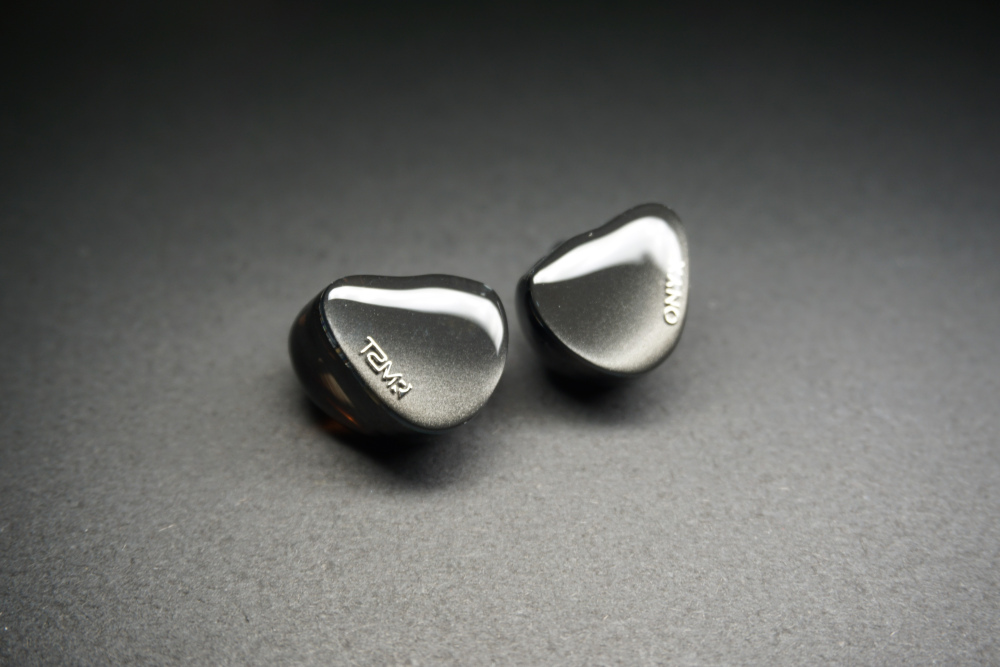

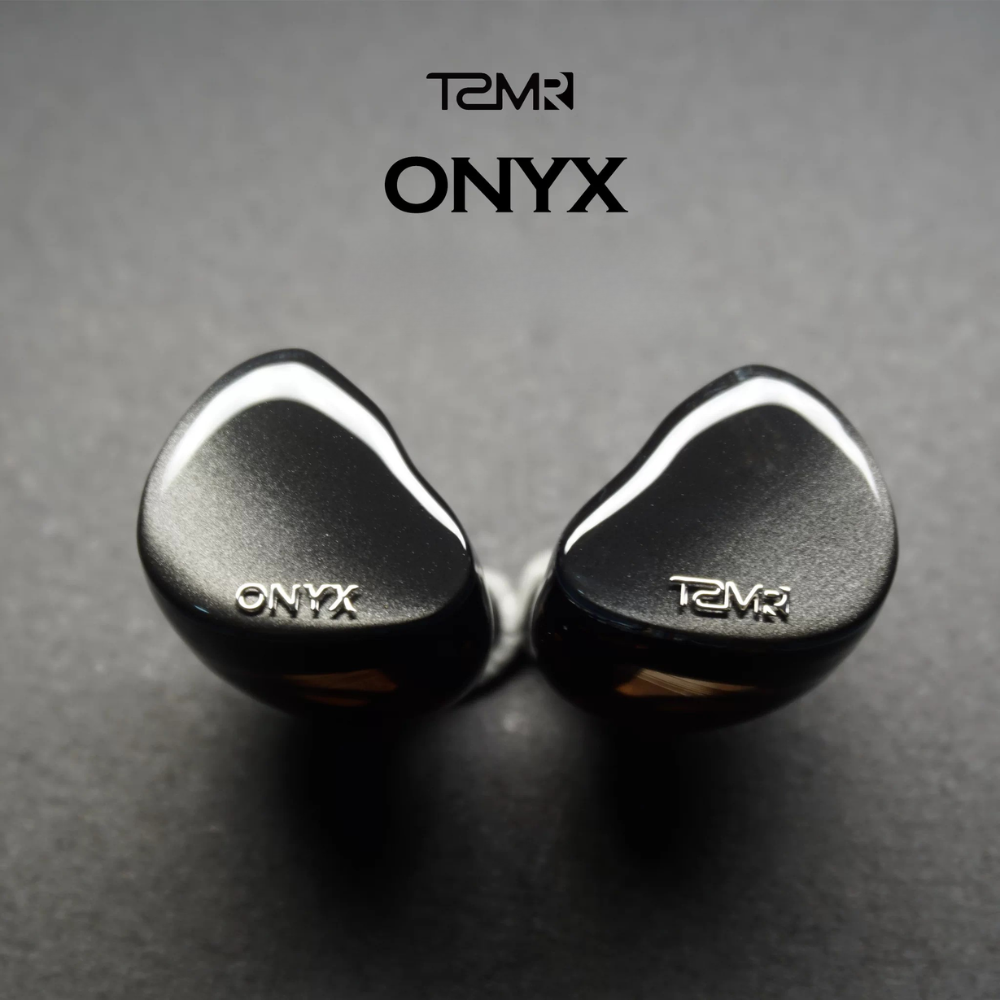

TSMR ONYX

Hybrid Hi-Fi Gaming In-ear Earphones

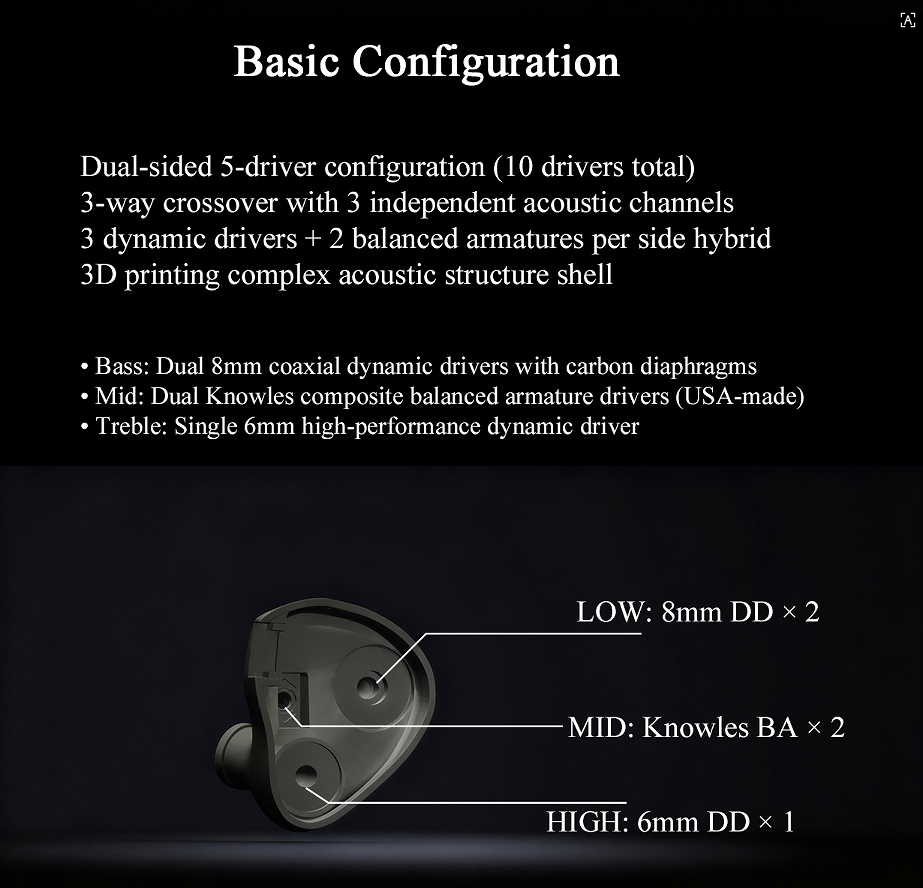

Basic Specifications

Dual-sided 5-driver configuration (10 drivers total)

3-way crossover with 3 independent acoustic channels

3 dynamic drivers + 2 balanced armatures per side hybrid in-ear design

3D printing complex acoustic structure shell



Bass: Dual 8mm coaxial dynamic drivers with carbon diaphragms

LOW: 8mm DD × 2



Mid: Dual Knowles composite balanced armature drivers (USA-made)

MID: Knowles BA × 2



Treble: Single 6mm high-performance dynamic driver

HIGH: 6mm DD × 1



Tuning Philosophy

ONYX introduces an all-new hybrid architecture

3-way crossover with 3 independent acoustic channels and 8 crossover components for scientific frequency division,3D-printed acoustic conduits, through specialized damping and precise control of the conduit's shape and length, further optimize the sound effects across various frequency bands, resulting in more accurate and pleasing sound reproduction.



With an optimized shape and structure design, it is comfortable to wear and ergonomically designed. It provides -26dB passive noise cancellation, with no sound leakage when in the ear, allowing you to enjoy music freely anytime, anywhere.



Low frequencies: dual 8mm coaxial carbon diaphragm dynamic driver deliver exceptional atmosphere and a powerful bass experience. The dual bass enhances the musicality of various sound styles, making the sound more expressive!



Mid frequencies: Dual Knowles composite balanced armature drivers, offering high resolution and superior layering. Vocals are beautiful and pleasing, with more precise spatial positioning. The imported balanced armature drivers are a strong guarantee of high-quality sound.



High frequencies: 6mm high-performance dynamic driver deliver rich detail, producing a beautiful and delicate sound. More details are revealed more clearly, reducing high-frequency harshness and making the sound more transparent and three-dimensional.

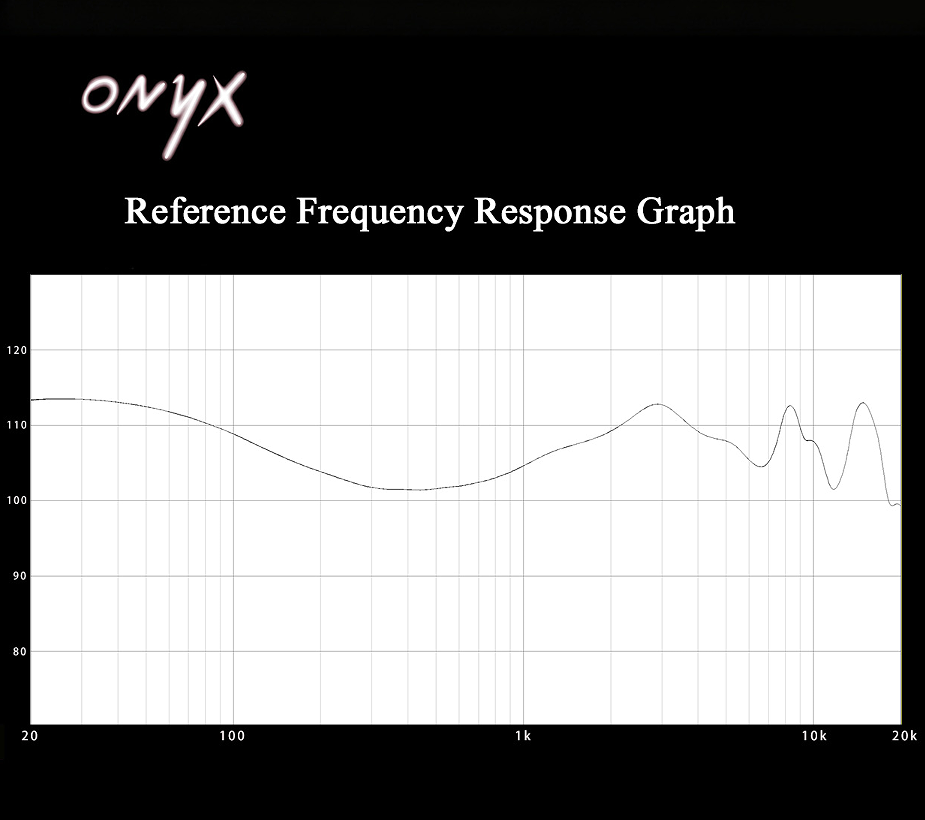

Reference Frequency Response Graph

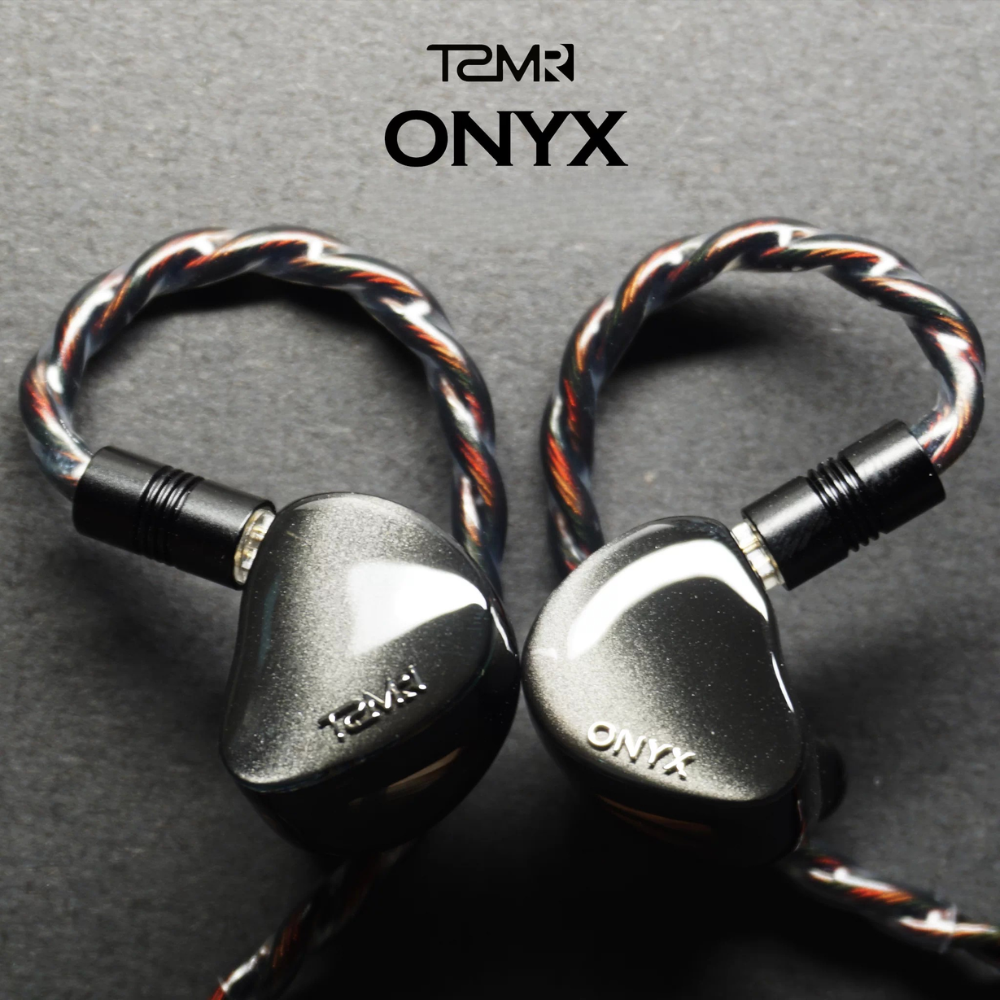

Cable Specification

Hi-Fi Edition

5N high purity OFC (oxygen-free copper) cable, balanced sound reproduction. Four-strand twisted single-core cable with 432 individual wires. Self-locking, swappable plugs design allows seamless switching between 3.5mm single-ended and 4.4mm balanced terminations.



Gaming Edition

Includes a Type-C adapter, universal 3.5mm TRRS (with mic) cable

Enabling direct plug-and-play compatibility with smartphones, iPads, and other devices. Ideal for gaming, music listening, voice calls, and live streaming across diverse scenarios.



It also supports PD 60W fast charging, ensuring a lag-free and noise-free gaming experience. The MEMS microphone provides precise sound pickup, and the cable is soft, comfortable, compact, and lightweight.

Product Specifications

Product Name: TSMR – ONYX In-Ear Hi-Fi Gaming Earphones

Sensitivity: 102 dB/Vrms (@1 kHz)

Total Harmonic Distortion (THD): <0.6% (@1 kHz)

Impedance: 12 Ω ±15% (@1 kHz)

Frequency Response Range: 5 Hz – 30 kHz

Effective Frequency Response Range: 20 Hz – 20 kHz



Cable Options

Hi-Fi Edition: Interchangeable 3.5mm and 4.4mm plugs

Gaming Edition: Includes Type-C adapter + 3.5mm TRRS cable with mic



Driver Configuration: single side 3 dynamic drivers + 2 balanced armature drivers

Package Contents

– Earphone (1 left, 1 right)

– Cable:

 • Hi-Fi Edition: 1 detachable cable with interchangeable 3.5mm / 4.4mm plugs

 • Gaming Edition: 1 Type-C adapter + 1 3.5mm TRRS cable with mic

– Protective carrying case

– Silicone ear tips (S/M/L sizes)

– Cleaning tool

– Quick-start manual

– Certificate of Conformance

– Warranty card
