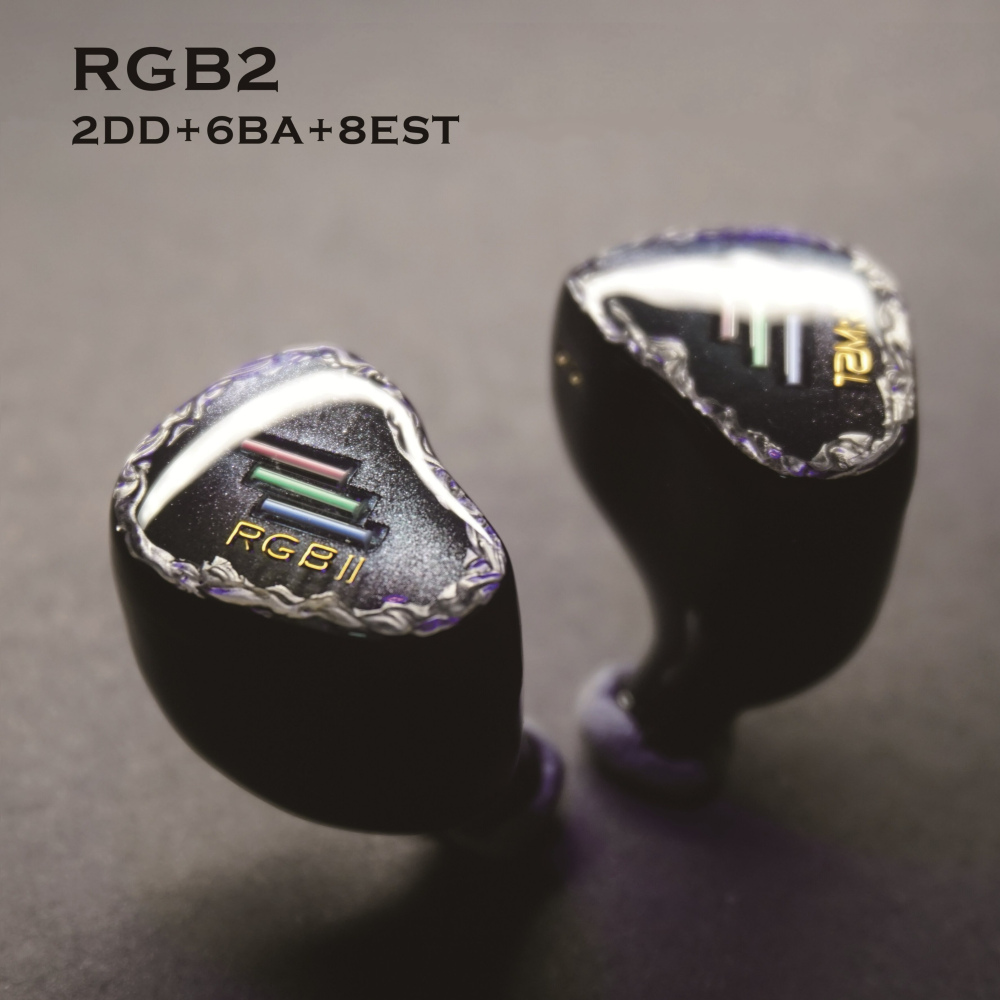

Tansio Mirai RGB2

Flaship 8EST + 6BA +2DD Hybrid TOTL HiFi Audiophile 2Pin 0.78mm In-ear Earphone IEMs with 3 Tuning Switches



Basic Configuration

Single-sided 16 drivers, double-sided 32 drivers,3-way crossover, 4-independent-channel design

Single-sided 2 Dynamic drivers, 6 Balanced Armatures, 8 Electrostatic hybrid ultra-flagship earphones

3D-printed complex acoustic structure shell, three-dimensional hand-painted luminous panel



LOW: 8mm DD*2

MID: Knowles BA*4

HIGH: Sonion BA*2

EHF: Sonion EST*8



About Tuning

RGB2 adopts a completely new configuration architecture



Low-frequency:

2 * 8mm coaxial carbon diaphragm dynamic drivers on each side, providing a better atmosphere and a powerful low-frequency experience



Mid-frequency:

4 * American Knowles balanced armatures on each side, with high resolution and better layering



High-frequency:

2 * Denmark Sonion Balanced Armatures on each side, transparent and smooth, rich in details, pleasant and delicate



Ultra-high-frequency:

8 * Danish Sonion Electrostatic drivers on each side, pushing the sound to a higher level



Under ultraviolet light, the panel will exhibit aurora-like changes and RGB lighting effects.



About The Tuning Switch

The RGB2 is equipped with a classic 3 tuning switches



The following are the main tuning settings recommended:

020: Standard balanced mode

100: Bass boost mode

003: Treble boost mode



The switch is turned on by pushing upwards and turned off by pushing downwards. The switch can be adjusted using the 0.78mm connector of the earphone cable.



*000: All off mode - no bass



RGB2 switch adjustment variation graph

Red: 100 low-frequency boost mode

Green: 020 standard equalization mode

Blue: 003 high-frequency boost mode



Border Three-Dimensional Hand-Painted Craftsmanship

*Each pair of earphones is hand-painted with slightly different panel patterns. Please refer to the actual item.



TSMR Co-Branded ISN Cable

Constructed of 6N single crystal copper and silver-plated single crystal copper, twisted into 4 strands

Supplied with a standard 4.4mm plug

Specially tuned for RGB2, significantly improving sound quality



Specification

Model: RGB2

Driver: Single-sided 2DD + 6BA + 8EST hybrid

Sensitivity: 105dB/Vrms(@1 KHZ)

THD:≤0.6%(@1kHz)

Connector: 2 pin 0.78mm

Impedance: 10 ohms±15%(@1kHz)

Frequency response range: 5Hz to 80kHz

Effective frequency response range: 20Hz- 20kHz

Plug: 4.4mm balanced plug



Package

RGB2 in-ear earphone

Earphone cable

Storage bag

Eartips(S/M/L)

Postcards

Instruction

Certificate

After-sales cards

Ultraviolet flashlights
